Williams / Data East Bridge Board


Williams / Data East Bridge Board

Out of stock

SKU: BRBoard Category:


This Bridge Board addresses the missing fuses in the 18V (controlled lamps) and 34V (solenoids) circuits before the bridge rectifiers. The life expectancy of the Capacitor in circuit is 10 to 15 years, and is already long past for all machines. All these problems can be fixed by using this Bridge Board.

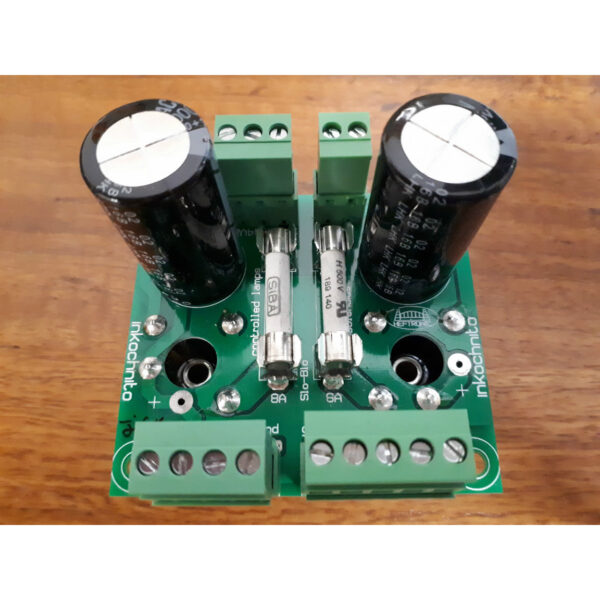

On this board are the bridge rectifiers, capacitor replacements and the new added fuses. Simple screw connections, no soldering skills needed. The bridge rectifiers are on the back side of the board and are also used for mounting the board in the back box. The board also has 2 leds for checking if the exit power is present.

List of compatible games (Williams and Data East) – http://home.kpn.nl/p.koch3/Supported_games_list.htm

Instructions – http://home.kpn.nl/p.koch3/Inkochnito_Bridge_Board.pdf

This Bridge Board was designed and produced by Peter “Inkochnito” Koch.

Additional information

Weight 0.16 kg
Dimensions 8 × 8 × 8 cm
