Description

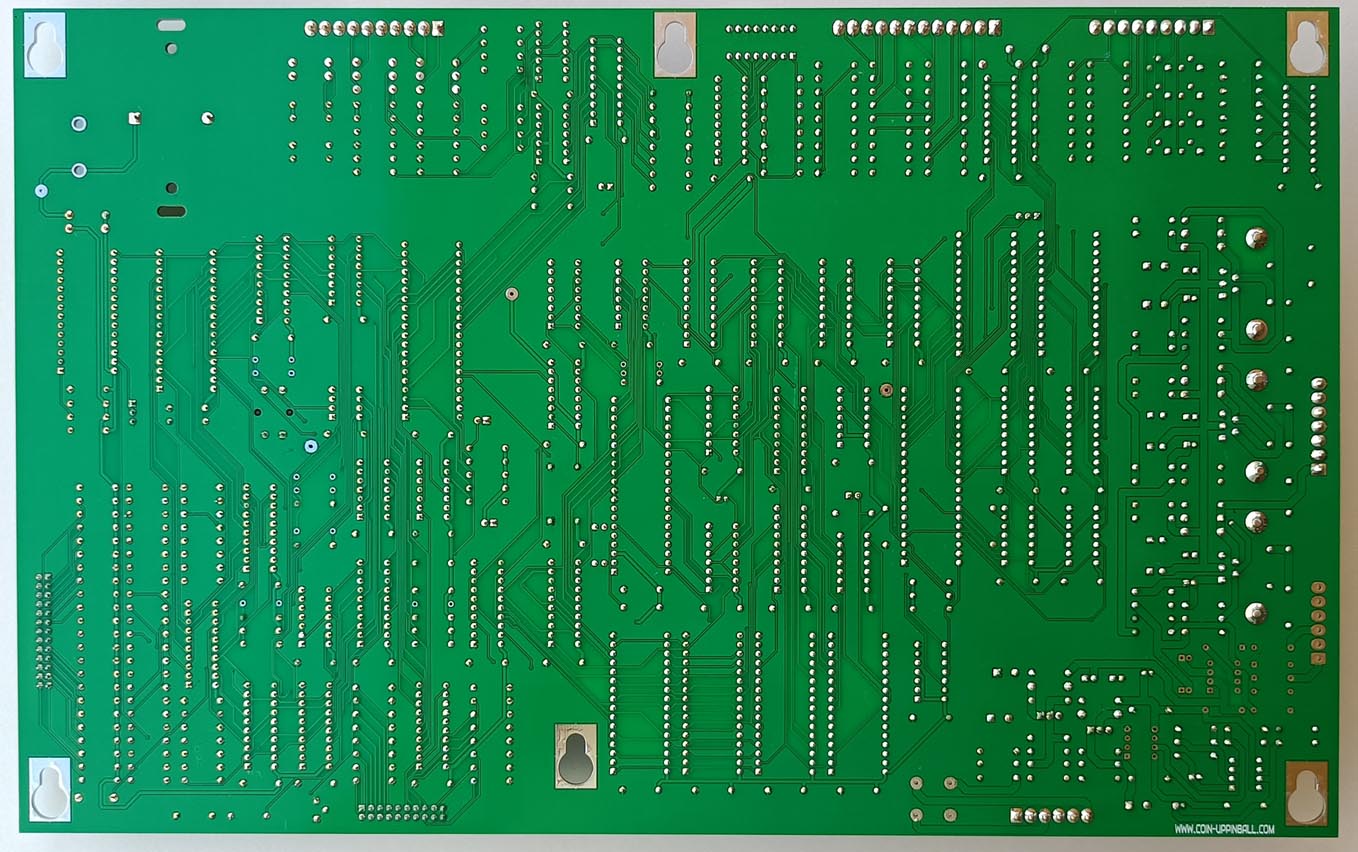

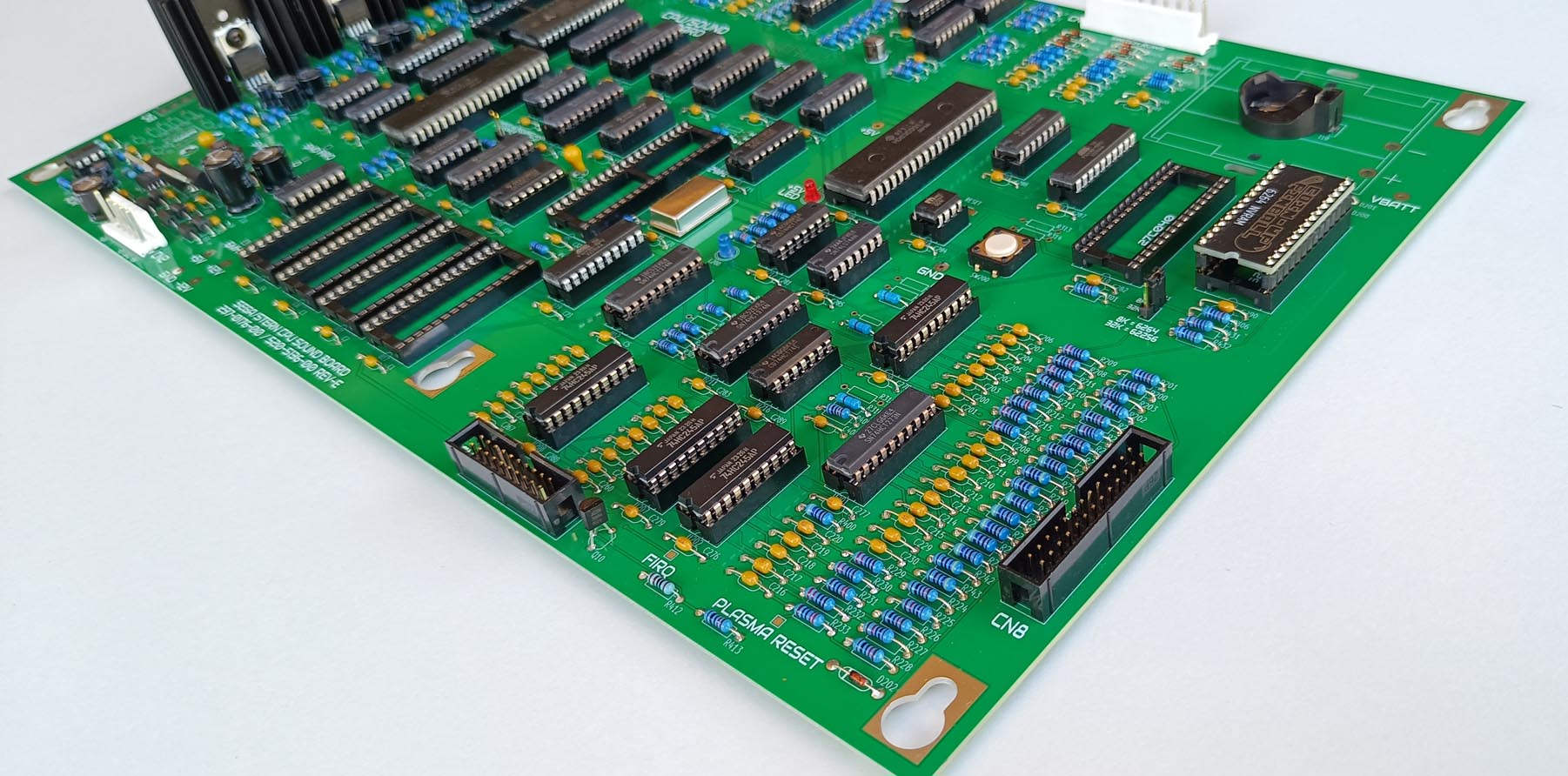

Stern Whitestar / Sega Pinball CPU / MPU Sound Board 520-5136-00 / 237-0176-00 Rev-E
Plug and Play direct 1:1 replacement with all features from the original.
Replaces Stern 520-5136-00 REV-A/B/C/D/E and Sega 237-0176-00
This is not a redesigned ‘multi’ board using FETs.
Features ;
– High Quality Components – We only use genuine components from reputable companies…(ST, Onsemi, Molex, Nichicon, TE Connectivity, Vishay, Yageo etc)
– NVRAM Included (No Need For Batteries)
– All 3 audio amps and components populated for compatibility with original stereo games (Forward compatibility for all non-stereo Whitestar/Sega games)
– Every chip socketed for easy repair (All sockets are TE Connectivity)
– Shrouded IDC Ribbon Cable Headers
– Upgraded Button Cell Battery Socket with Original AA Unpopulated Footprint
– Jumper pins added for quick game/RAM compatibility set-up
– 2 layer ground plains added top and bottom for solid ground reliability
– True to Original (Original Schematics Can Be Used)
– Supports Every Single Game as the Original
– 12 Months Local Warranty
– Designed & Assembled in Australia
NVRAM, audio ram & both CPU’s are included
BSMT2000 chip and Game ROM Not Included
BSMT2000 chip can be purchased here ;
BSMT2000 Sound Chip – 105-0116-00 – RTBB
Game Compatibility:
Apollo 13
Austin Powers
Godzilla
Goldeneye
Harley-Davidson
High Roller Casino
Independence Day
Lost In Space
The Lost World Jurassic Park
Monopoly
NFL
Playboy
RollerCoaster Tycoon
The Simpsons Pinball Party
South Park
Space Jam
Starship Troopers
The Star Wars Trilogy Special Edition
Striker Xtreme
Terminator 3: Rise of the Machines
Twister
Viper Night Drivin’
The X Files
NOTE – Sharkey’s Shootout will require a different PAL at U213.
If you are purchasing this board for Sharkey’s Shootout, please notify us, as the default PAL included will not work. We will include the correct PAL.
Also, NVRAM will be replaced by a button cell battery, as Sharkey’s Shootout requires a different RAM.
