Stern Playfield Support Slide Bracket Kit for SAM Machines – 535-6862-05
Starting with Iron Man Pro (and some, but not all, of the previous game Big Buck Hunter Pro), Stern’s “Pro” models no longer come with playfield support slide brackets. Later re-runs of such games as Batman The Dark Knight, Spider-Man, and The Simpson’s Pinball Party are also missing these brackets.
This kit replaces those much needed brackets!

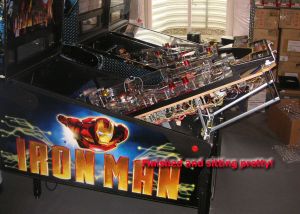

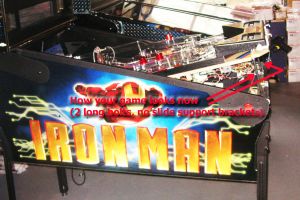

Without these brackets your game can not rest in the extended service position (see secondary photos). When these brackets are missing it is easy to harm the mechanicals on the underside of the playfield and it is also difficult to slide the playfield in and out of the machine.
This bracket kit is compatible with all SAM system machines from Iron Man through The Walking Dead (the last SAM system game).
Kit comes complete with;
(2) playfield support slide brackets (535-6862-05)
(4) #10×1/2″ mounting screws
(2) #8-32 t-nuts
(2) #8-32×5/8″ mounting bolts
(1) installation instructions
Replaces Stern part – 535-6862-02
Reference – 535-6862-05Set
